C750 Gold

4.4

Rated 4.4 out of 5 stars

4.4 Stars (11 Reviews)

750W Gold Fully Modular ATX PSU

Color:Black

Variante

Contenuto della confezione

C750 Power Supply
24-Pin ATX Power Cable
4+4-Pin CPU Power Cables x2
6+2-pin PCIe Power Cable x3
SATA Cables x2
Peripherals Cables x2
6-32 Screws x4
AC Power Cord

Risorse

Manuals & Documentation

Overview

This PSU delivers 750 watts of clean, stable power which is plenty for most gaming needs while providing headroom for future upgrades and is an ideal wattage to start overclocking.

Modular design lets builders use only the cables they need
The sleeved main cables resist heat damage as well as fraying
Fits any case conforming to the ATX standard
Supports NVIDIA GPUs up to 3090 and AMD GPUs up to RX 6800 XT
Zero RPM Fan mode silences the fan under low-load conditions
Dynamic 135mm fluid-dynamic bearing fan
10-year warranty

Tech Specs

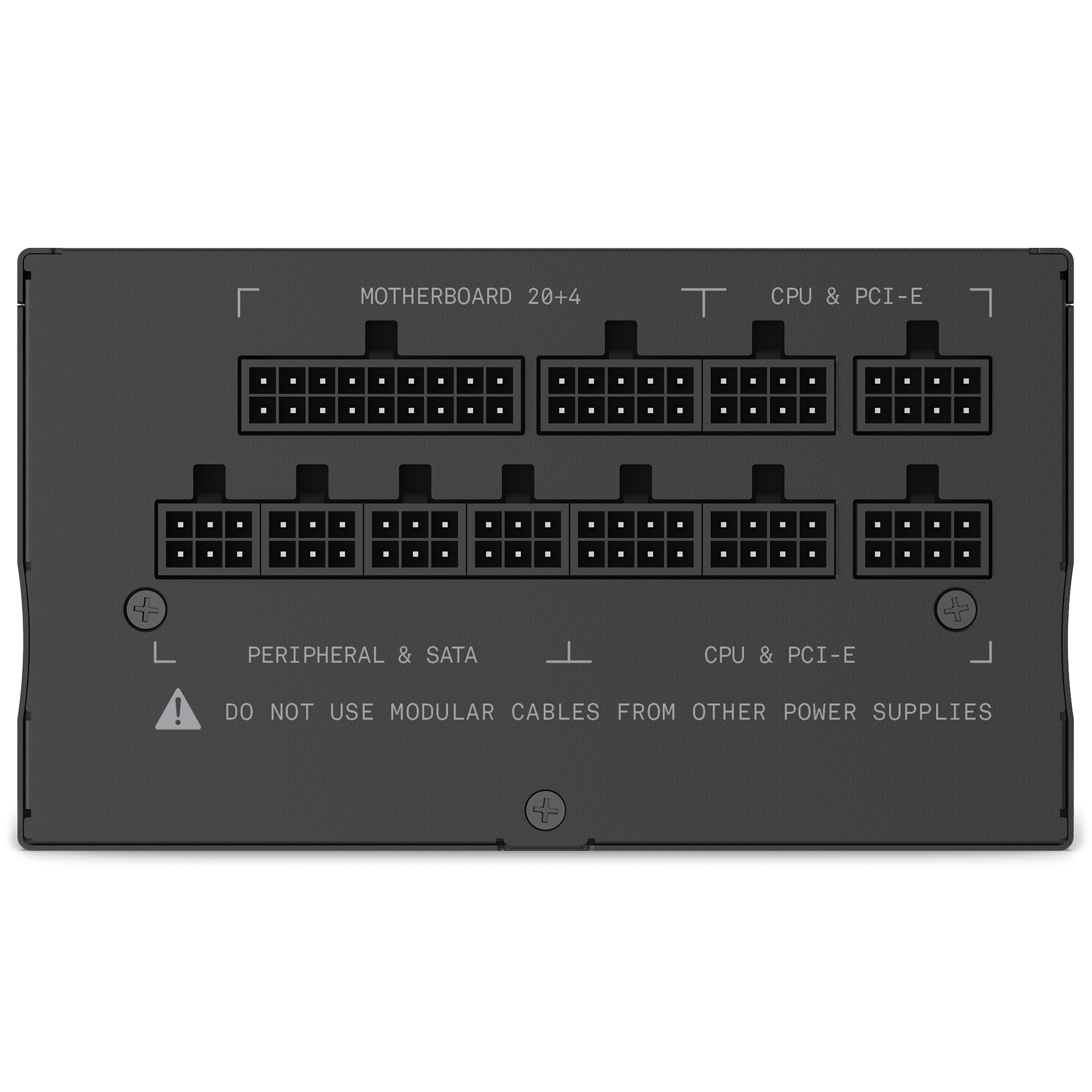

Output Connectors

24-pin ATX power

4+4-pin CPU power

6+2-pin PCIe power

SATA power

Peripherals

Cable Specs

24-pin ATX power

600 mm, Nylon sleeving

4+4-pin CPU power

700 mm, Nylon sleeving

6+2-pin PCIe power

650 + 150 mm, Nylon sleeving

SATA power

500 + 150 mm

Peripherals

500 + 150 mm

AC Input Rating

100 - 240Vac

10A-5A 50Hz-60Hz

DC Output Rating

+3.3V and +5V

22A (120W)

+12V

62.5A (750W)

-12V

0.3A (3.6W)

5Vsb

3A (15W)

Total

750W

Operation

PF Correction

Active @0.96

MTBF

100,000 hours

Temperature

0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

Energy Efficiency

Rating

80 Plus Gold

20% loading

89.20% @115Vac

50% loading

90.80% @115Vac

100% loading

87.73% @115Vac

Fan Specs

Dimensions

135 x 135 x 25 mm

Speed

0-2300 ± 10% RPM

Airflow

93.02 CFM (Tpy.)

Noise

44.5 dBA max

Bearing

Fluid Dynamic Bearing (FDB)

General

Dimensions

150 x 150 x 86 mm

Material(s)

Steel, PCB and plastic

Compliance Standard

ATX12V v2.52 / EPS12V v2.92

Regulation & Certification

cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC / BSMI / RCM / EAC / CE / LVD / UKCA

Warranty

10 years

Model Number

PA-7G1BB

UPC

UPC (TW)

815671017253

UPC (CN)

815671017185

UPC (AR)

815671017192

UPC (US)

815671017208

UPC (EU)

815671017215

UPC (UK)

815671017222

UPC (AU)

815671017239

UPC (JP)

815671017246

UPC (WO)

815671017277

UPC (IN)

815671017260

EAN

EAN (TW)

5060301697564

EAN (CN)

5060301697496

EAN (AR)

5060301697502

EAN (US)

5060301697519

EAN (EU)

5060301697526

EAN (UK)

5060301697533

EAN (AU)

5060301697540

EAN (JP)

5060301697557

EAN (WO)

5060301697588

EAN (IN)

5060301697571
