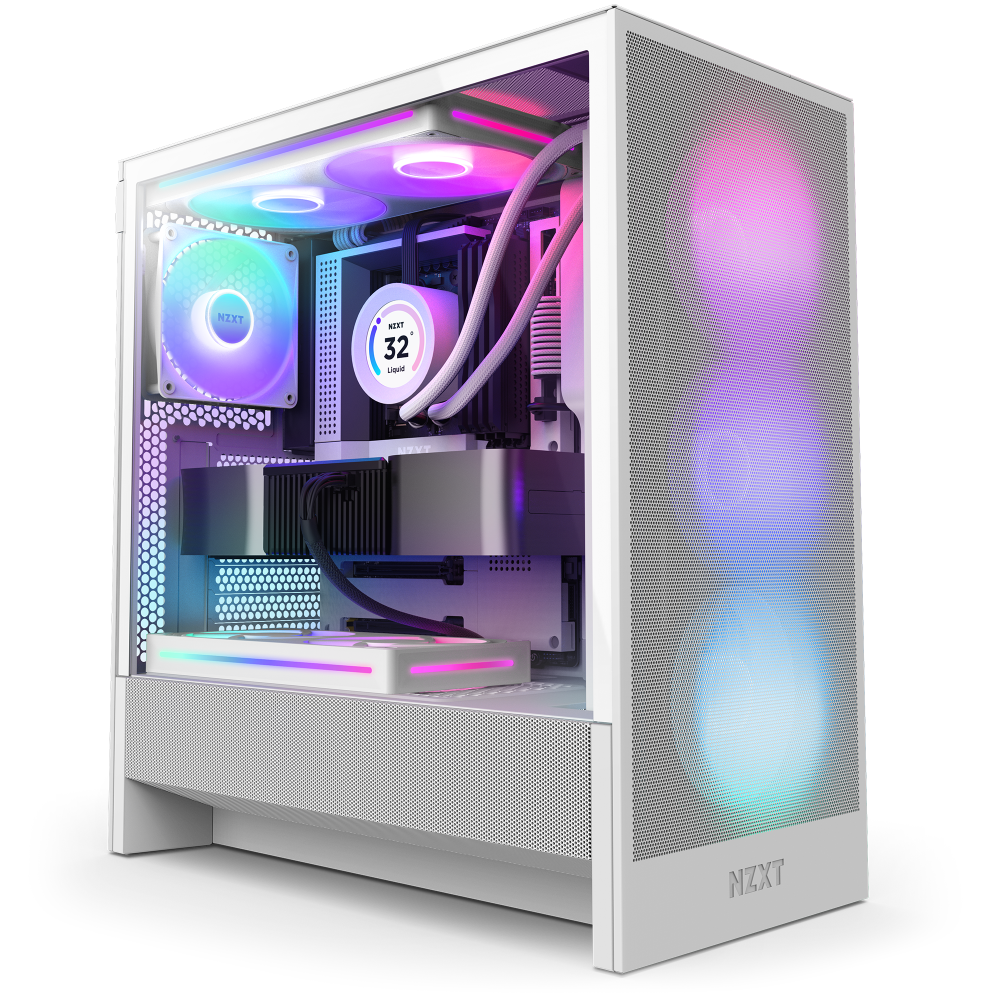

The NZXT H5 Flow RGB is a white computer case with a visible side panel, showcasing internal components lit by RGB lighting. Enhanced airflow keeps the system cool as front fans and interior parts glow pink, blue, and purple.

The NZXT H5 Flow RGB is displayed in white with its side panel off, showcasing an empty interior, multiple ventilation openings, and fans on the side and rear to optimize airflow.

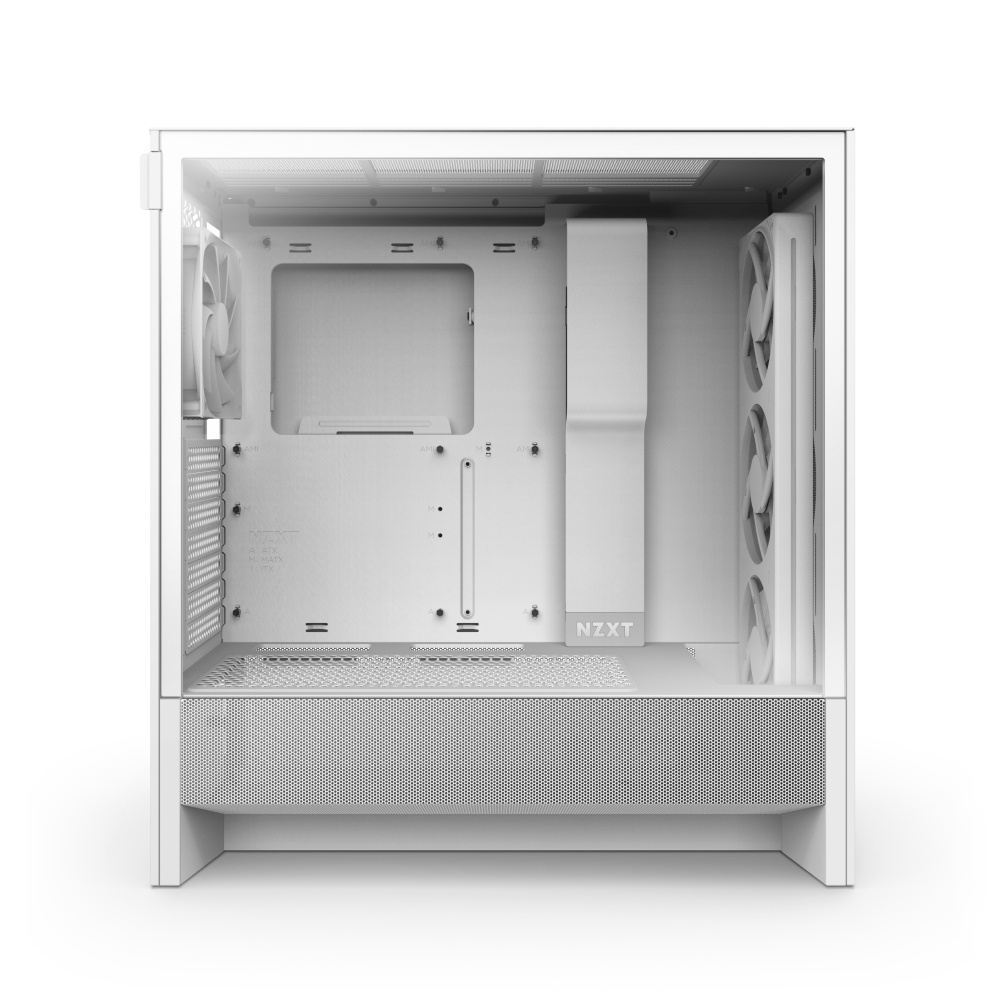

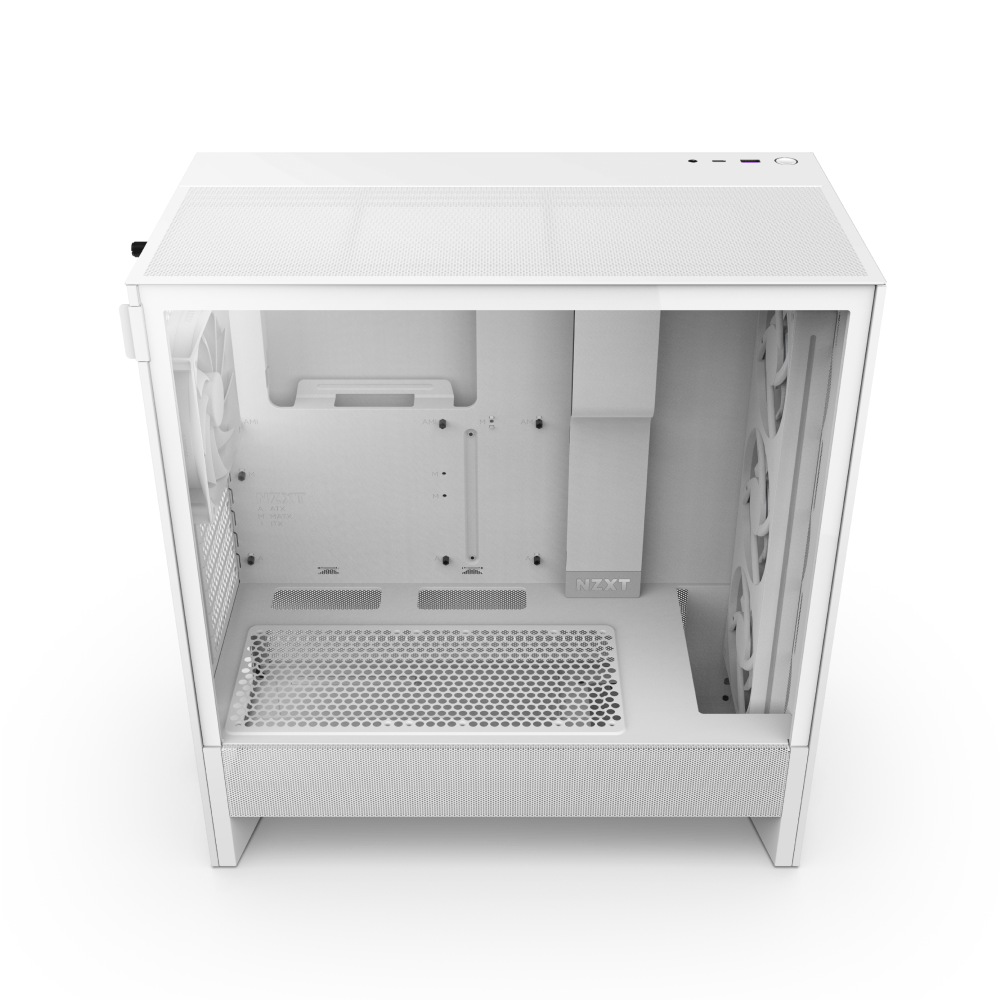

The NZXT H5 Flow RGB is a white, empty mid-tower PC case with a transparent side panel, visible fan mounts for airflow, cable management options, and ventilation grills, shown from above on a transparent background.

The NZXT H5 Flow RGB computer case is shown in white, angled from above, with a mesh front panel for airflow, visible cooling fans with RGB lighting inside, and a minimalist design featuring power and USB ports on the top edge.

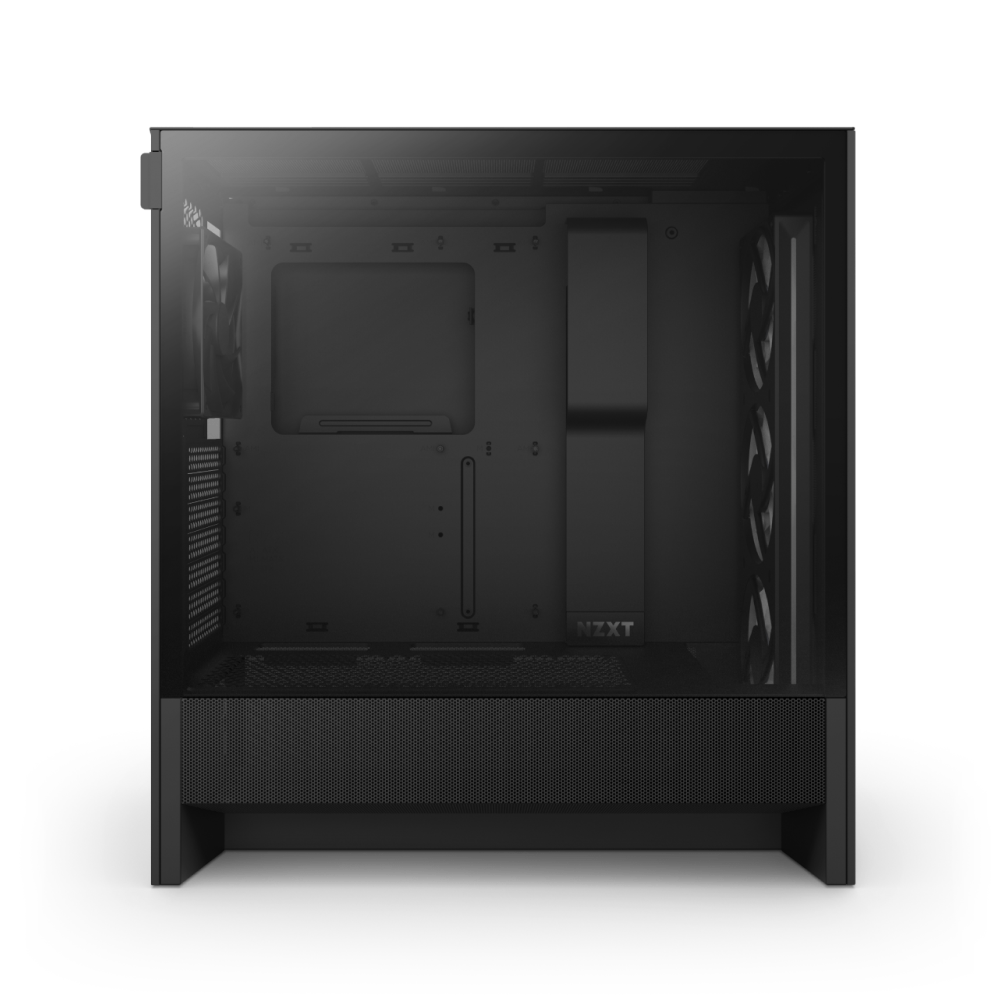

The NZXT H5 Flow RGB is a black computer case with a transparent side panel, featuring an empty interior designed for optimal airflow, slots for components, and pre-installed front RGB fans.

The NZXT H5 Flow RGB is a white computer case with front panel, side glass panel, and top cover removed, showing three front fans for optimal airflow and an open interior for easy PC component installation.

The NZXT H5 Flow RGB is a white, minimalist computer case with side viewing, showcasing internal compartments, cable management routes, hardware mounting points, and optimized airflow for efficient cooling.

The NZXT H5 Flow RGB is a modern black desktop gaming PC case featuring a transparent side panel, enhanced airflow, and vibrant RGB lighting on its fans, cooling system, and interior components.

Side view of NZXT H5 Flow RGB computer case with transparent glass panel, highlighting internal mounting slots, cable management, RGB lighting, and optimized front airflow with included cooling fans.

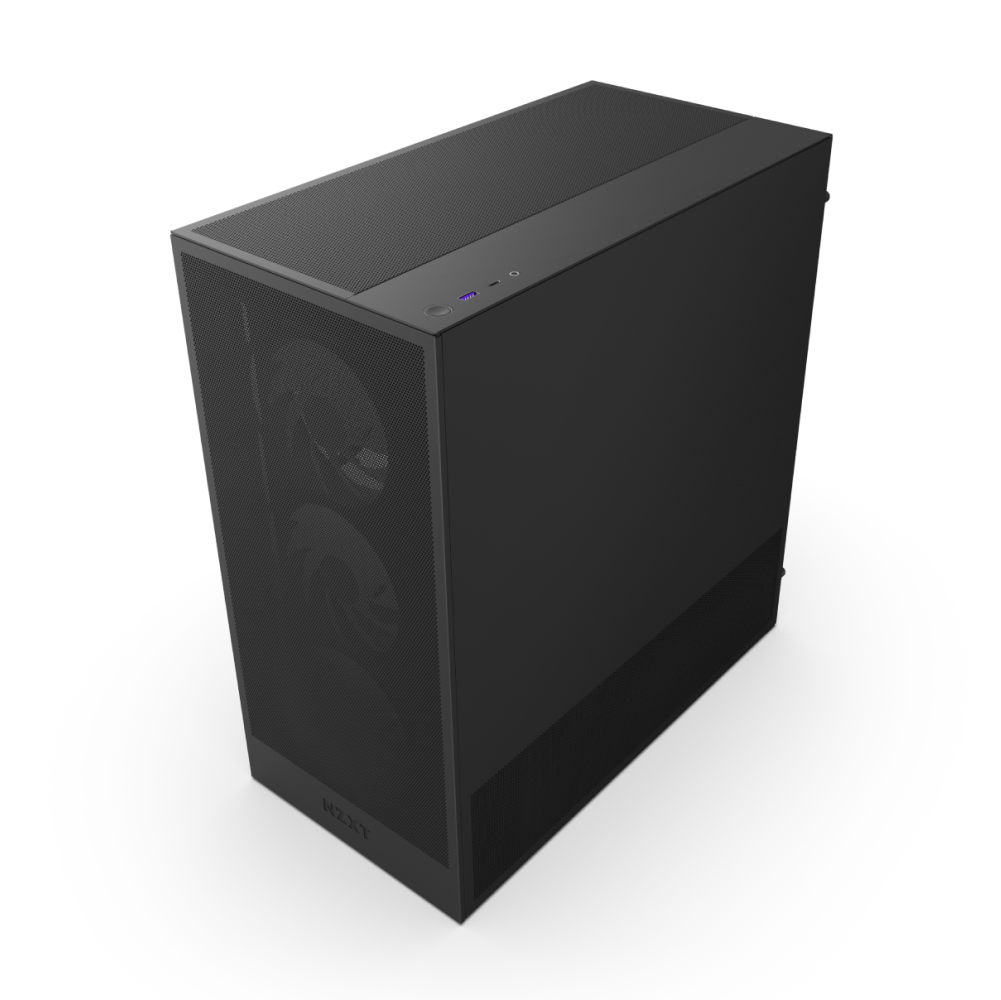

The NZXT H5 Flow RGB is a black computer tower case featuring a mesh front panel for optimal airflow, visible cooling fans, and top-mounted power and USB ports.

H5 Flow RGB

4.5

Rated 4.5 out of 5 stars

4.5 Stars (275 Reviews)

Compact ATX Mid-Tower Airflow Case with RGB Fans

Color:White

Variante

Contenuto della confezione

H5 Flow RGB
F360 RGB Core (CV)
F120Q (CV)
Installation accessories
User guide

Risorse

Manuals & Documentation

Overview

The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.

The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.

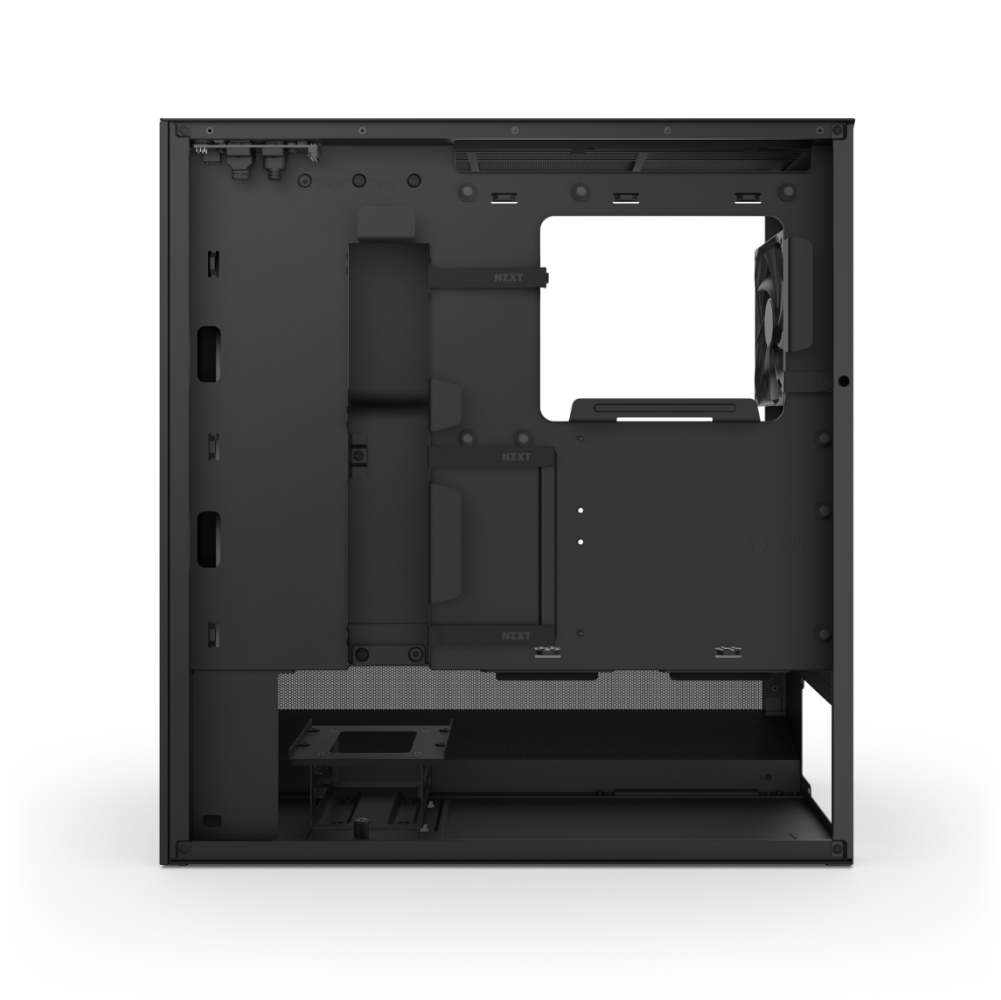

Effortlessly route and conceal cables using the wide channels, hooks, and straps.

H5 Flow RGB

Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.

More Air to the GPU

Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).

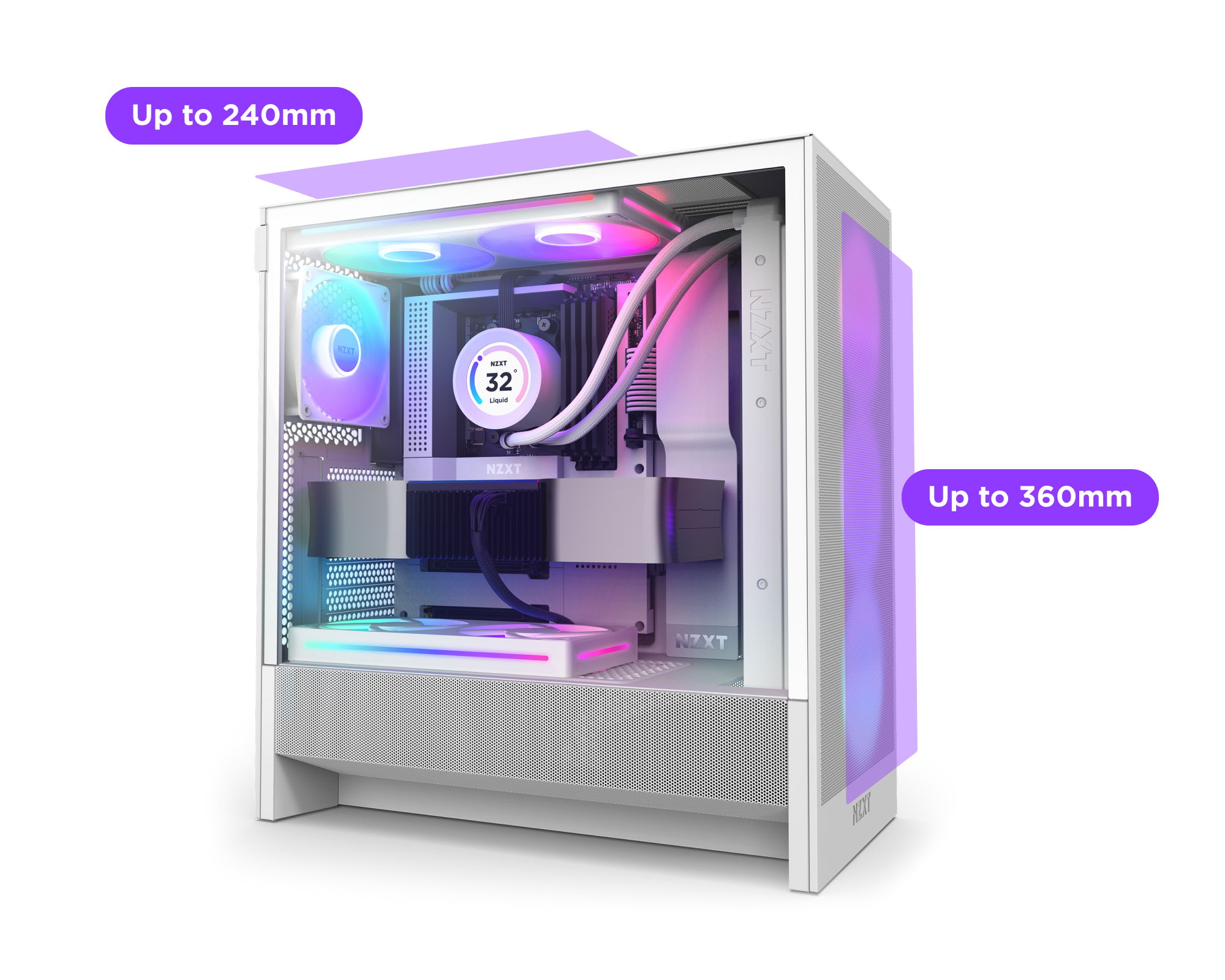

Fits Large Radiators

Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.

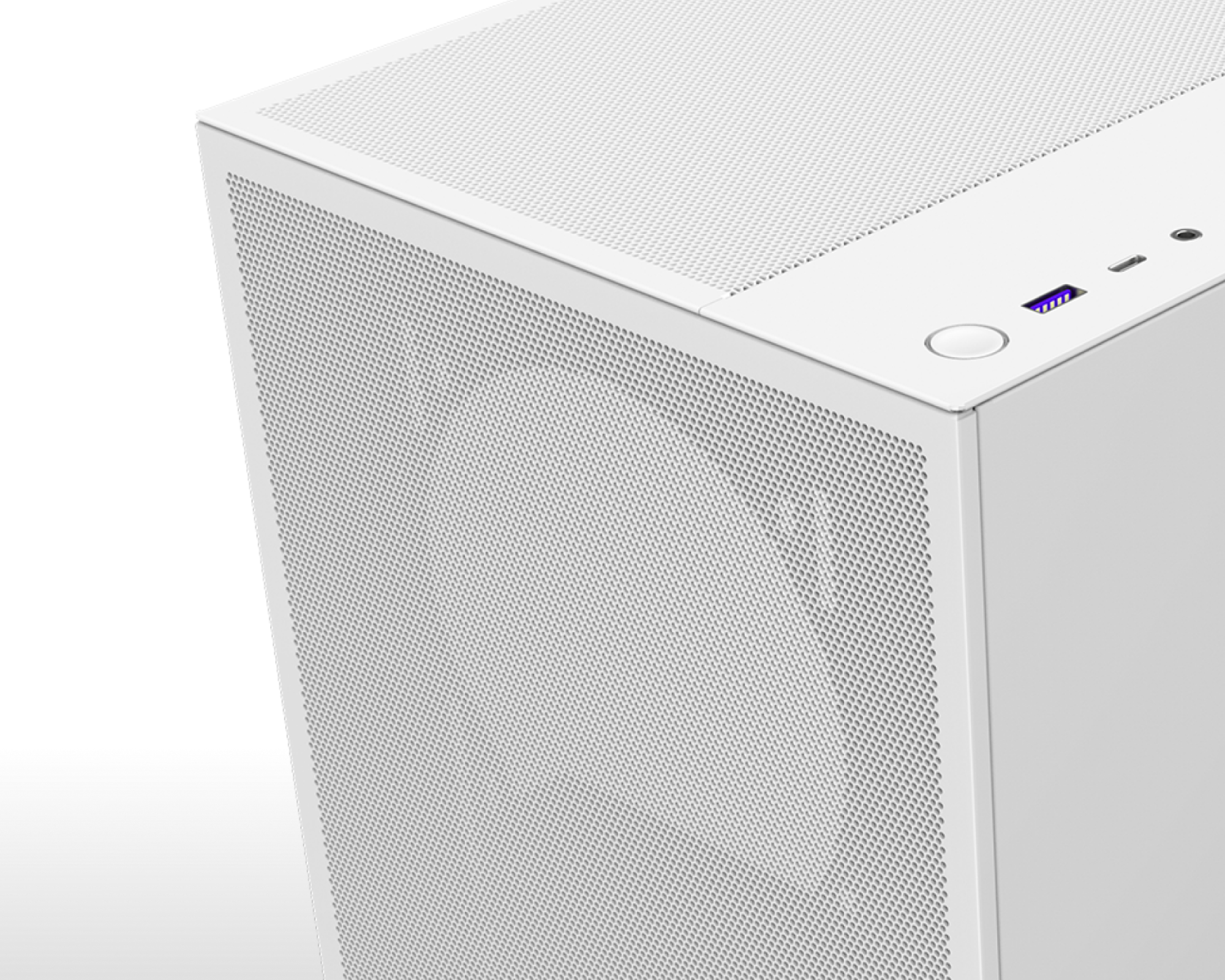

Optimized for Airflow

Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.

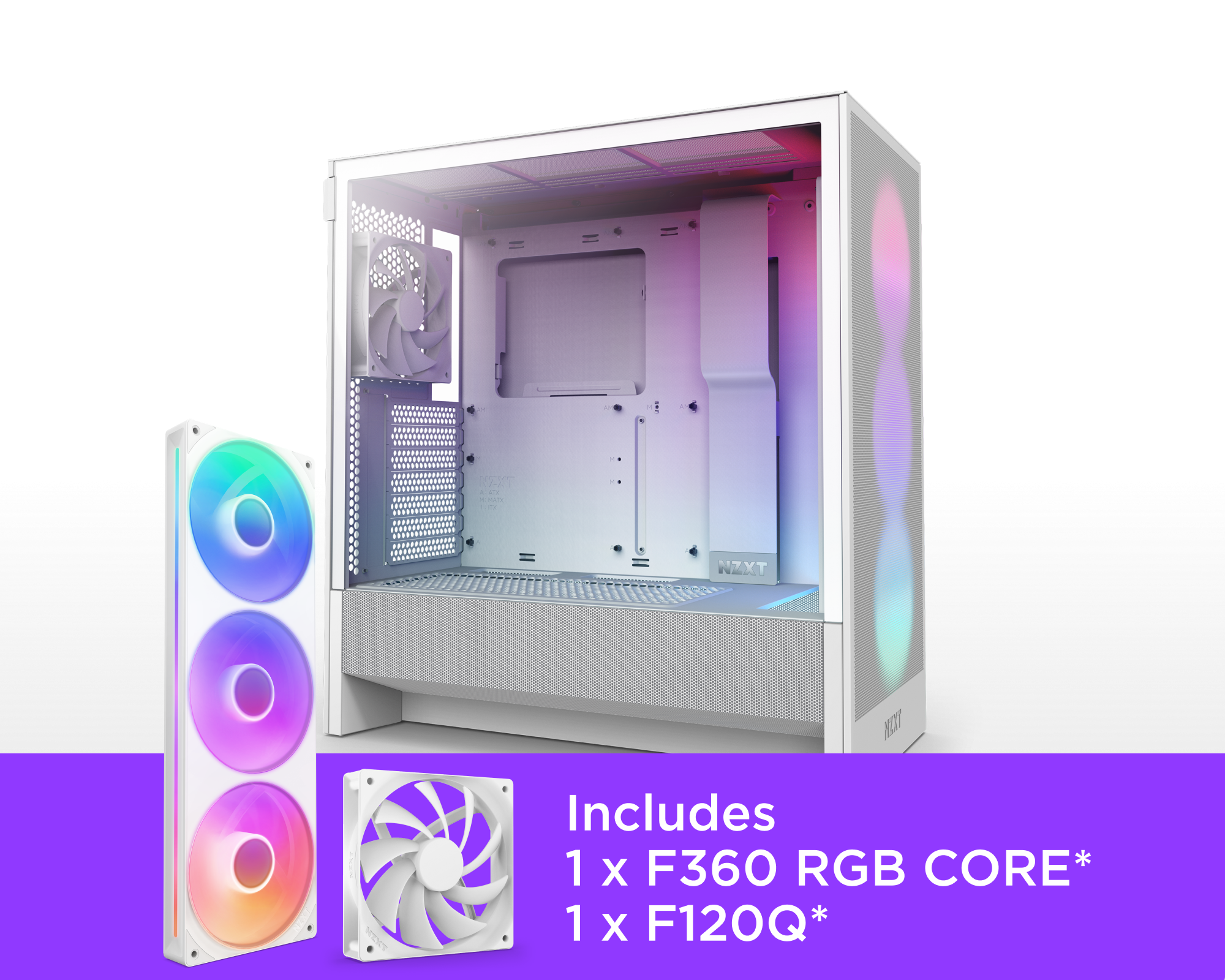

Pre-Installed Fans*

Front-mounted F360 RGB Core fan and rear F120Q fan for out-of-the-box cooling and lighting.

*Case Version (3-pin DC)

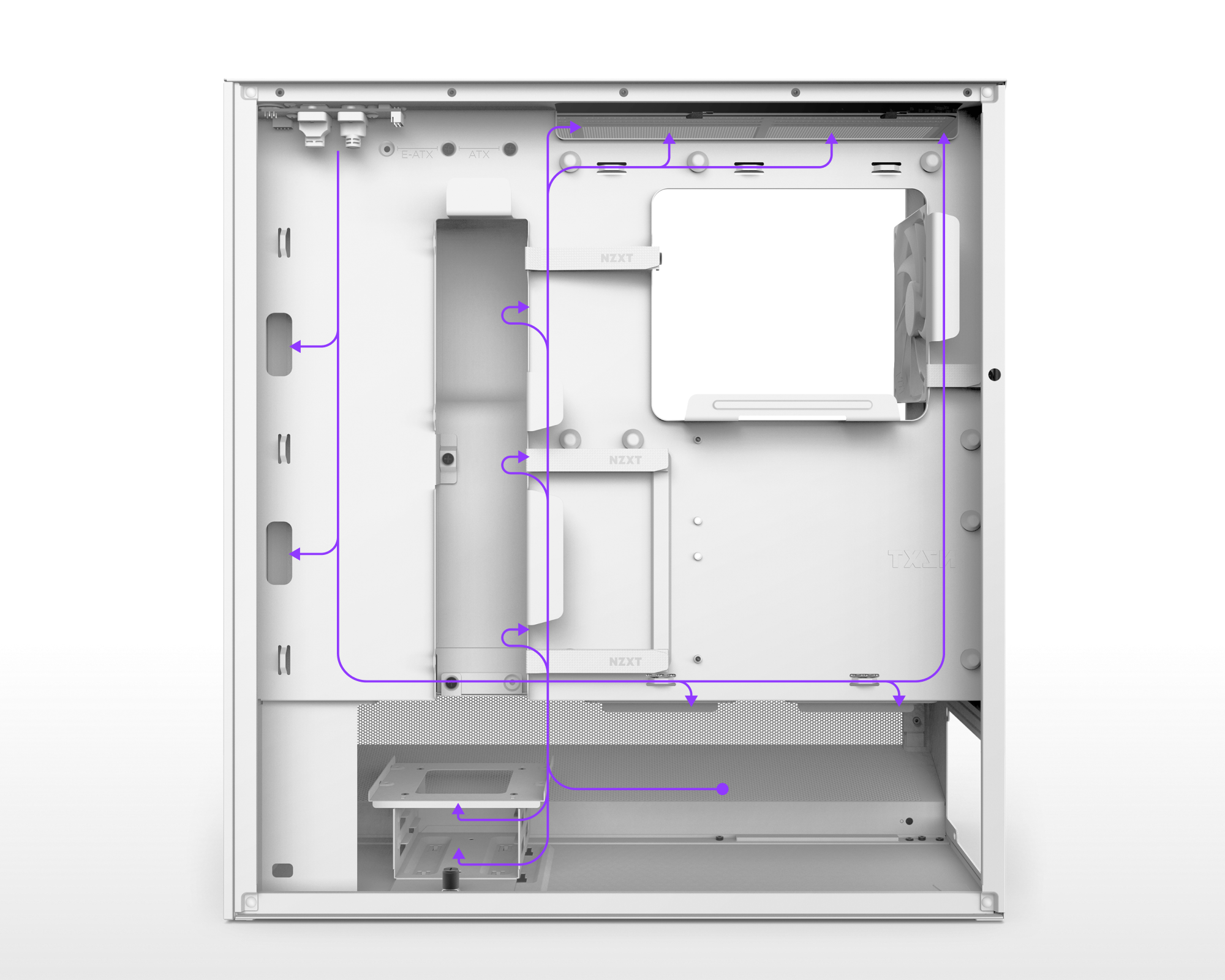

Easy Cable Management

Effortlessly route and conceal cables using the wide channels, hooks, and straps.

Tool-less Access

Easily open up the front, side, and top panels without any tools.

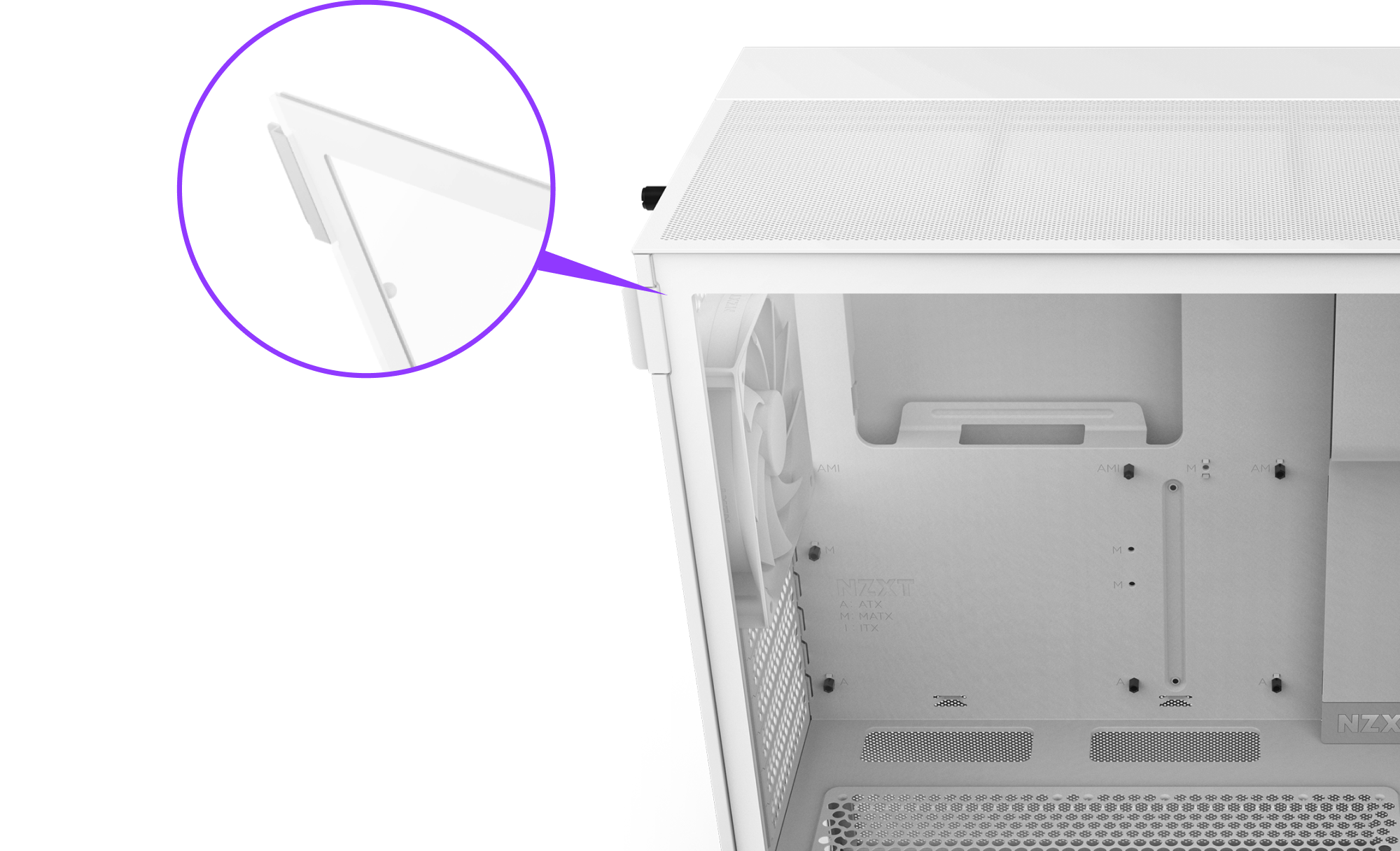

Strong and Sleek

Crafted from thick steel and tempered glass for long-lasting quality.

Tech Specs

Key Specs

Motherboard Support

E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX

Enclosure Type

Mid-Tower

Case Material

SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions

Height (with feet)

465 mm / 18.31 in

Width

225 mm / 8.86 in

Depth

430 mm / 16.93 in

Weight

7.63 kg / 16.82 lb

Compatibility & Clearance

CPU Cooler Height

Up to 170 mm

GPU Length

Up to 410 mm

PSU Length

Up to 200 mm

Cable Management

Up to 28.7 mm

Top Radiator

Up to 240 mm (280 mm with low-profile memory)

Top Mounted Radiator + Fan Thickness

Up to 55 mm

Front Ports

USB 3.2 Type-A

USB 3.2 Gen 2x2 Type-C (20 Gbps)

Headset Audio Jack

Expansion Slots

Standard

Vertical

Drive Bays

2.5"

3.5"

Fan Support

Front

3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included)

Top

2 x 120 mm / 2 x 140 mm

Bottom

2 x 120 mm

Rear

1 x 120 mm (1 x F120Q Case Version included)

Radiator Support

Front

Up to 360 mm

Top

Up to 240 mm (280 mm with low-profile memory only)

Fan Specs - F360 RGB Core (Case Version)

Model

F360 RGB Core (Case Version)

Speed

1,700 ± 200 RPM

Airflow

50.1 CFM

Static

1.27 mm-H₂O

Noise

23.3 dBA

Fan Connector

3-pin DC

Fan Specs - F120Q (Case Version)

Model

F120Q (Case Version)

Speed

1,350 ± 150 RPM

Airflow

60.2 CFM

Static

1.05 mm-H₂O

Noise

24.1 dBA

Fan Connector

3-pin DC

General

Warranty

2 years

White Variant

Model Number

CC-H52FW-R1

UPC

810074845922

EAN

5056547205861

Black Variant

Model Number

CC-H52FB-R1

UPC

810074845939

EAN

5056547205878
